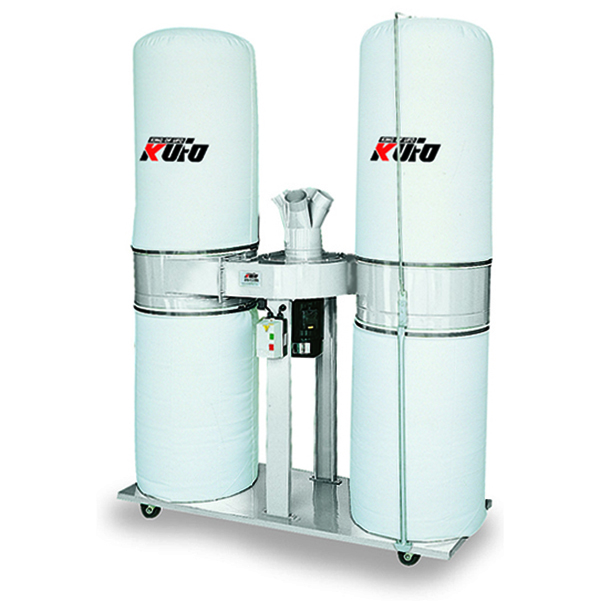

Bag Filter Dust Collector
| Model | UFO-102B |
|---|---|
| Motor | 2.2kw (3HP) |
| Inlet diameter | 150mm X 1 (6" X 1) |
| 100mm X 3 (4" X 3) | |
| Air volume | 1925 CFM |
| Bag volume | 0.15M3 x 2 (5.30cuft x 2) |
| Static pressure of water | 9.26 inch |
| Packing (Dust collector) | 122cm X 58cm X 58cm (48" X 23" X 23") |
| Net weight | 76kg (169 lbs) |
| Gross weight | 82kg (180 lbs) |
Annex File
* All specifications, dimensions and design characteristics are subject to change without notice.
