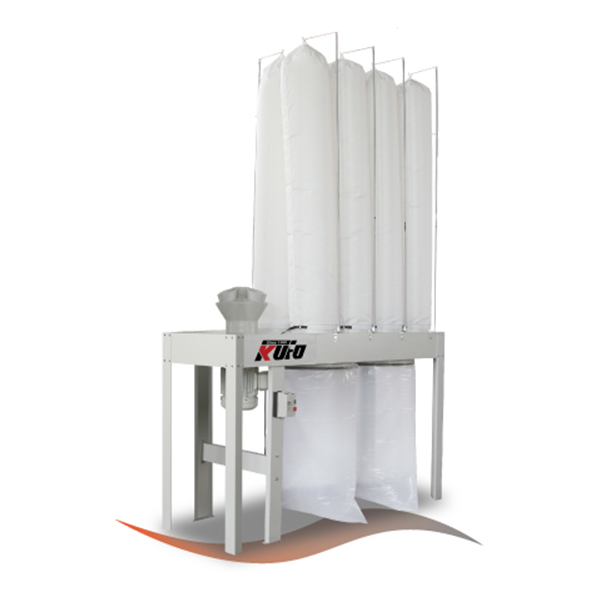

Bag Filter Dust Collector
| Model | UFO-104H1 |
|---|---|
| Motor | 7.5KW(10HP),3 phase |
| Inlet diameter | 240mm X 1 |
| 125mm (5") X 6(Optional) | |
| Air volume | 188M3/min.(6627 CFM) |
| Bag volume | 0.84M3 (29ft3) |
| Static pressure of water | 19 inch |
| Packing (Wooden case) | 225cm x 102cm x 115cm (89" x 40" x 45") |
| Net weight | 360 kgs. (800 lbs.) |
| Gross weight | 460 kgs. (1010 lbs.) |
* All specifications, dimensions and design characteristics are subject to change without notice.
