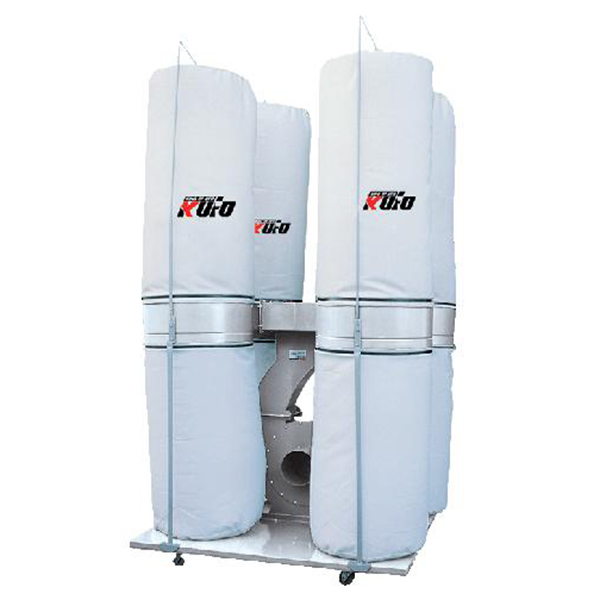

Bag Filter Dust Collector
| Model | UFO-104D |
|---|---|
| Motor | 7.5kw (10HP) |
| Inlet diameter | 240mm (9-1/2") X 1 |
| 100mm (4") X 6 (Standard) | |
| 125mm (5") X 5(Optional) | |
| Air volume | 118M3/min. (4167 CFM) |
| Bag volume | 0.88M^3 (31.17 ft^3) |
| Static pressure of water | 12.25 inch |
| Packing (Wooden case) | 174cm x 174cm x 85cm(68" x 68" x 34") |
| Net weight | 330kgs. (726 lbs.) |
| Gross weight | 490 kgs. (1078 lbs.) |
* All specifications, dimensions and design characteristics are subject to change without notice.
