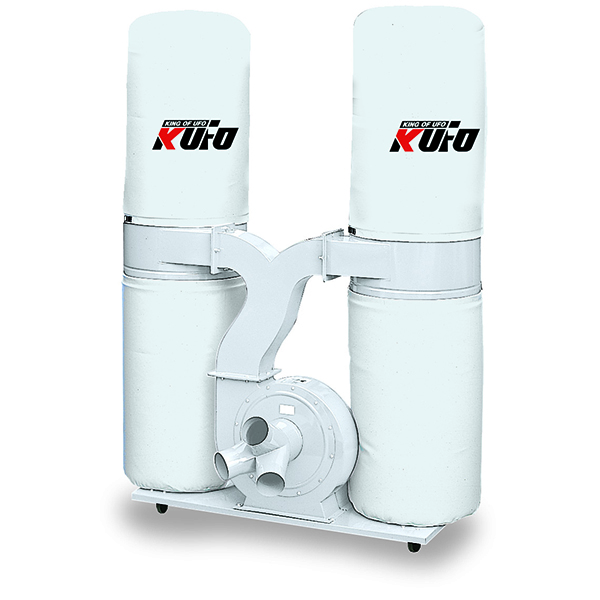

Bag Filter Dust Collector
| Model | UFO-105B |
|---|---|
| Motor | 5.6KW(7.5HP),3 phase |
| 7.5kW(10HP), 3 phase (Optional) | |
| Inlet diameter | 200mm (8") X 1 |
| 100mm (4") X 4(Standard) | |
| 125mm (5") X 2(Optional) | |
| Air volume | 104M3/min.(3673 CFM) |
| Bag volume | 0.75M3 (26.2ft3) |
| Static pressure of water | 10.55 inch |
| Packing (Wooden case) | 174cm x 84cm x 84cm (68" x 33" x 33") |
| Net weight | 230 kgs. (506 lbs.) |
| Gross weight | 280 kgs. (616 lbs.) |
* All specifications, dimensions and design characteristics are subject to change without notice.
