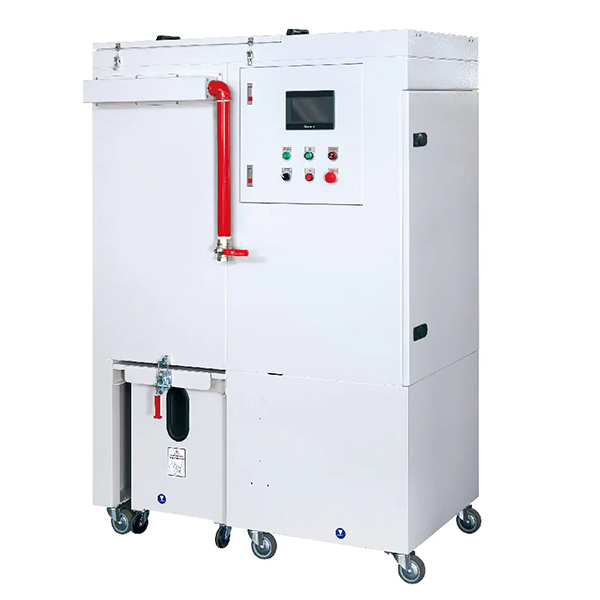

Explosion Proof Dust Collectors
Our LS series has been designed for an industrial use, to extract different kind of dust and dry shavings from a single or multiple dust sources.
The blower is fitted with a high efficiency centrifugal fan with curving blades. The fan is positioned inside the unit and therefore soundproofed to obtain a low sound level.
Its fine filter material ensures you a residual dust content of less than 0.1mg/m³.
ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS
Featuring a built-in Fire Control system to prevent fire danger.
| Model | LS-300AD / ACD |
|---|---|
| Inlet size | 200 mm (8") |
| Motor | 2.25 kW (3HP) |
| Air Flow | 50 CMM (1,765 CFM) @60Hz |
| Static Pressure (Max) | 3,200 Pa @60Hz |
| Filter Cleaning | by compressed air |
| Air pressure requirements | Water-free and oil-free, 6~8 kgs / cm² (5.8~7.8 bar) |
| Filter Material | Polyester, 10 μm |
| Polyester + Teflon Membrane, 0.5 μm | |
| Number of Filters | 4 pcs cartridges |
| Filter area | 19.2 m² |
| Dust Tank Volume | 0.13 m³ |
| Noise Rate | 70 dB(A) |
| N.W. / G.W. | 370 / 450 Kg |
| Packing Dimensions | 155L x 86W x 213H (cm) |
* All specifications, dimensions and design characteristics are subject to change without notice.
