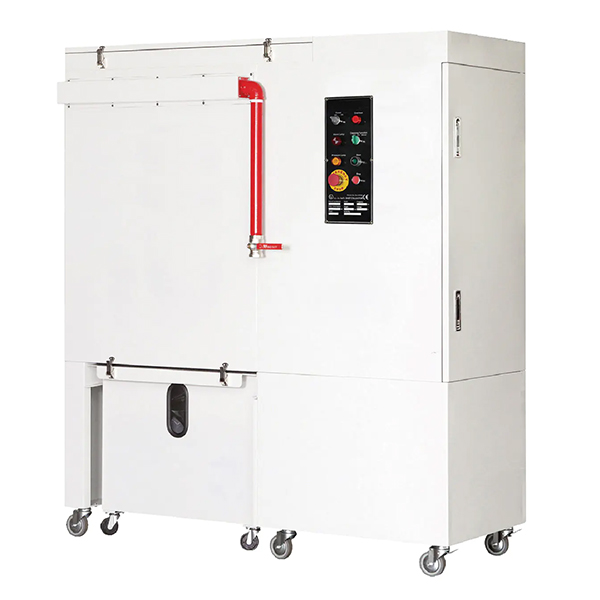

Explosion Proof Dust Collectors
Our LS series has been designed for an industrial use, to extract different kind of dust and dry shavings from a single or multiple dust sources.
The blower is fitted with a high efficiency centrifugal fan with curving blades. The fan is positioned inside the unit and therefore soundproofed to obtain a low sound level.
Its fine filter material ensures you a residual dust content of less than 0.1mg/m³.
ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS
Featuring a built-in Fire Control system to prevent fire danger.
| Model | LS-500AC / ACD |
|---|---|
| Inlet size | 250 mm (10") |
| Motor | 3.7 kW (5HP) |
| Air Flow | 88 CMM (3,108 CFM) @60Hz |
| Static Pressure (Max) | 3,800 Pa @60Hz |
| Filter Cleaning | by compressed air |
| Air pressure requirements | Water-free and oil-free, 6~8 kgs / cm² (5.8~7.8 bar) |
| Filter Material (LS-500AD) | L-PET, 5 μm |
| L-PET + Teflon coating, 0.5 μm | |
| Filter Material (LS-500ACD) | Polyester, 10 μm |
| Polyester + Teflon Membrane, 0.5 μm | |
| Number of Filters | 20 pcs bag filters (LS-500AD) |
| 6 pcs cartridges (LS-500ACD) | |
| Filter area | 8 m² (LS-500AD) |
| 28.8 m² (LS-500ACD) | |
| Dust Tank Volume | 0.23 m³ |
| Noise Rate | 76 dB(A) |
| N.W. / G.W. | 450 / 540 Kg (LS-500AD) |
| 460 / 550 Kg (LS-500ACD) | |
| Packing Dimensions | 1.88L x 0.76W x 2.11H (m) |
* All specifications, dimensions and design characteristics are subject to change without notice.
