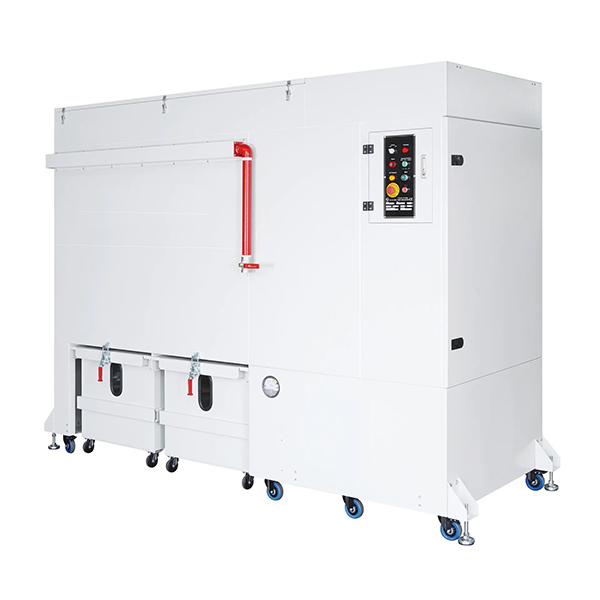

Explosion Proof Dust Collectors
Our LS series has been designed for an industrial use, to extract different kind of dust and dry shavings from a single or multiple dust sources.
The blower is fitted with a high efficiency centrifugal fan with curving blades. The fan is positioned inside the unit and therefore soundproofed to obtain a low sound level.
Its fine filter material ensures you a residual dust content of less than 0.1mg/m³.
ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS
Featuring a built-in Fire Control system to prevent fire danger.
| Model | S-1000AD / ACD |
|---|---|
| Inlet size | 300 mm (12") 2P 350 mm (14") 4P |
| Motor | 7.5 kW (10 HP) |
| Air Flow | 135 CMM (4,765 CFM) @60Hz 2P 180 CMM (6,355 CFM) @60Hz 4P |
| Static Pressure (Max) | 4,500 Pa @60Hz 2P 2,400 Pa @60Hz 4P |
| Filter Cleaning | by compressed air |
| Air pressure requirements | Water-free and oil-free, 6~8 kgs / cm² (5.8~7.8 bar) |
| Filter Material (LS-1000AD) | L-PET, 5 μm |
| L-PET + Teflon coating, 0.5 μm | |
| Filter Material (LS-1000ACD) | Polyester, 10 μm |
| Polyester + Teflon Membrane, 0.5 μm | |
| Number of Filters | 48 pcs bag filters (LS-1000AD) |
| 15 pcs cartridges (LS-1000ACD) | |
| Filter area | 19.2 m² (LS-1000AD) |
| 72 m² (LS-1000ACD) | |
| Dust Tank Volume | 0.32 m³ *2pcs |
| Noise Rate | 78 dB(A) |
| N.W. / G.W. | 1,180 / 1,370 Kg (LS-1000AD) |
| 1,200/ 1,400 Kg (LS-1000ACD) | |
| Packing Dimensions | 3.29L x 1.26W x 2.39H (m) |
* All specifications, dimensions and design characteristics are subject to change without notice.
