Explosion Proof Dust Collectors
Our LS series has been designed for an industrial use, to extract different kind of dust and dry shavings from a single or multiple dust sources.
The blower is fitted with a high efficiency centrifugal fan with curving blades. The fan is positioned inside the unit and therefore soundproofed to obtain a low sound level.
Its fine filter material ensures you a residual dust content of less than 0.1mg/m³.
ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS
Featuring a built-in Fire Control system to prevent fire danger.

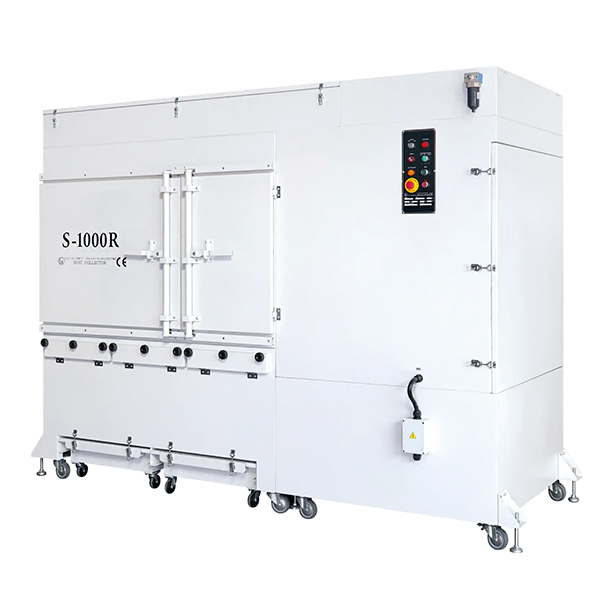

| Model | S-1000R |
|---|---|
| Inlet size | 350 mm (14") |
| Motor | 7.5 kW (10 HP) |
| Air Flow | 180 CMM (6,355 CFM) @60Hz |
| Static Pressure (Max) | 2,400 Pa |
| Filter Cleaning | by compressed air |
| Air pressure requirements | Water-free and oil-free, 6~8 kgs / cm² (5.8~7.8 bar) |
| Pre-filter | 3 pcs |
| Pre-filter Material | filter/carbon |
| Filter Material | Polyester, 10 μm |
| Polyester + Cellulose, 5 μm | |
| Polyester + Teflon Membrane, 0.5 μm | |
| Number of Filters | 6 pcs cartridges |
| Filter area |
60 m² (Normal) 120 m² (Polyester + Cellulose) |
| Dust Tank Volume | 0.084 m³ *2pcs |
| Noise Rate | 72 dB(A) |
| N.W. / G.W. | 1,120 / 1,270 Kg |
| Packing Dimensions | 289L x 120W x 235H (cm) |
* All specifications, dimensions and design characteristics are subject to change without notice.
