Enclosed Canister Dust Collectors

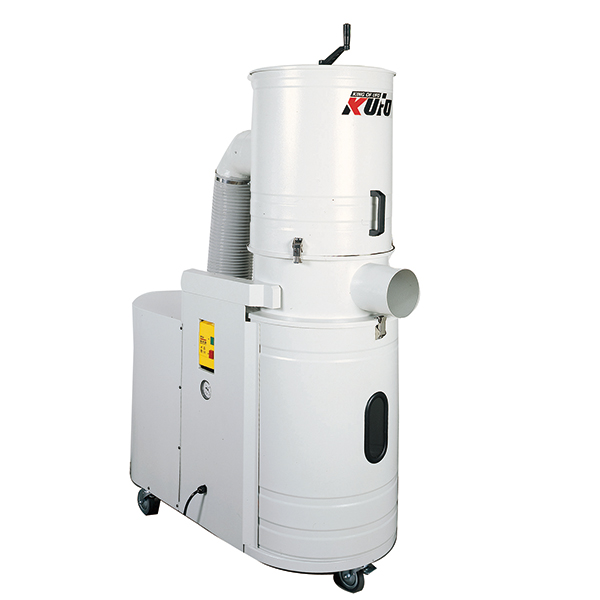

DC-103

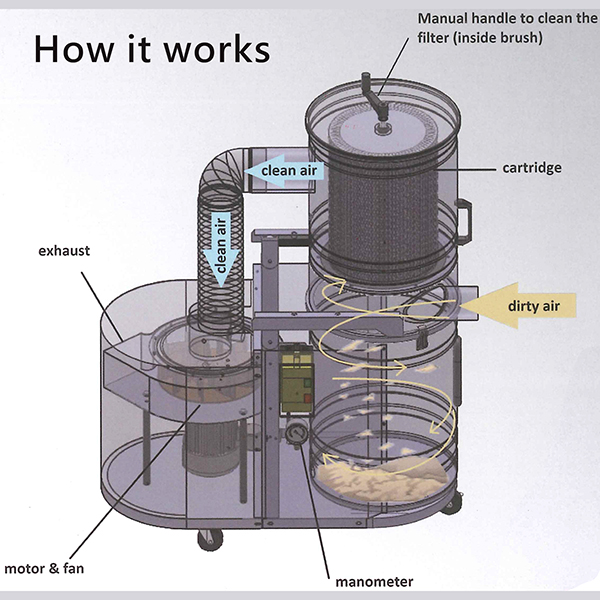

How it works
DC-103
How it works
Enclosed Canister Dust Collector

Model DC-102 / DC-103 / DC-105



•   Reduce toxic hazardous dust in the air at workplace.

•   Designed for all types of dry wood dust from all popular woodworking machines.

•   Powerful motor with efficient fan.

•   Pleated filter and plastic dust bag protected by metal tank.

•   The plastic dust bag can easily be removed by opening and tilting the filter housing.

•   See through glass for checking the dust level in the dust bag.

•   Cleaning filter by turning the brush inside the filter housing.






Examples

4 DC-103 IN METAL SHEET PROCESSING FACTORY 2 DC-105 ARE USED WITH A CNC LASER CUTTING MACHINE
A DC-103 IS USED WITH THE COMPUTERIZED LATHE. A DC-103 IS USED IN THE COSMETIC POWDER FACTORY
A DC-103 IS USED IN THE METAL INDUSTRY A DC -102 IS USED WITH A SEPARATOR



Model DC-102 DC-103 DC-105
Motor 1.5 kW (2 HP) 2.2 kW (3 HP) 3.75 kW (5 HP)
Air Flow 1560 m3/h 1950 m3/h 3420 m3/h
Air Speed 2.72 m/s 2.71m/s 3.97m/s
Pressure 1460 Pa 1808 Pa 2670 Pa
Filter area 2.53 m2 2.65 m2 3.24 m2
density < 0.5 mg /m3 < 0.5 mg /m3 < 0.5 mg /m3
Filter mesh size 5 micron (Standard), 5 micron (Standard), 5 micron (Standard),
  0.5 micron (optional) 0.5 micron (optional) 0.5 micron (optional)
Dust tank volume 90 liters 120 liters 163 liters
Inlet diameter 100 mm 100mm x 2 or 125mm x 1 100mm x 3 or 150mm x 1
Max. sound 72 dB(A) 80 dB(A) 90 dB(A)
Weight of canister filter 9.0 kgs 10.8 kgs 12.7 kgs
weight of plastic bag 0.1 kgs 0.1 kgs 0.1 kgs
Machine Dimensions 1220 x 508 x 1450 mm 1231 x 540 x 1603 mm 1397 x 635 x 1753 mm
Packing Dimensions 128 x 65 x 151 cm 137 x 69 x 167 cm 148 x 72 x 191 cm
Net weight 95 kgs 116 kgs 170 kgs

* All specifications, dimensions and design characteristics are subject to change without notice.
