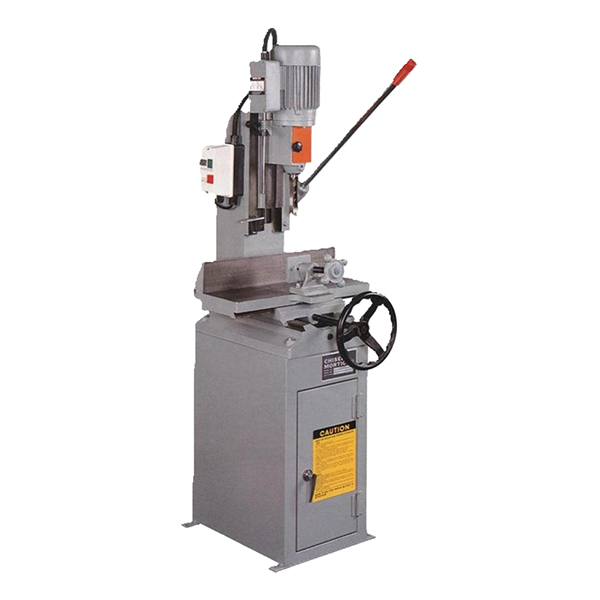

Chisel Mortiser
- Reliable , Trouble Free , Accuracy and Long Last

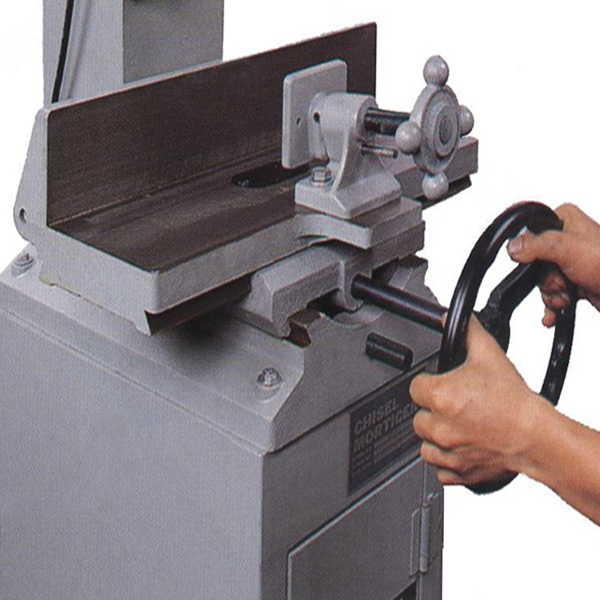

- Single Hand wheel Design
- The design for both longitudinal and Lateral table movements control provides the easy, accurate and fast table adjustments(left)

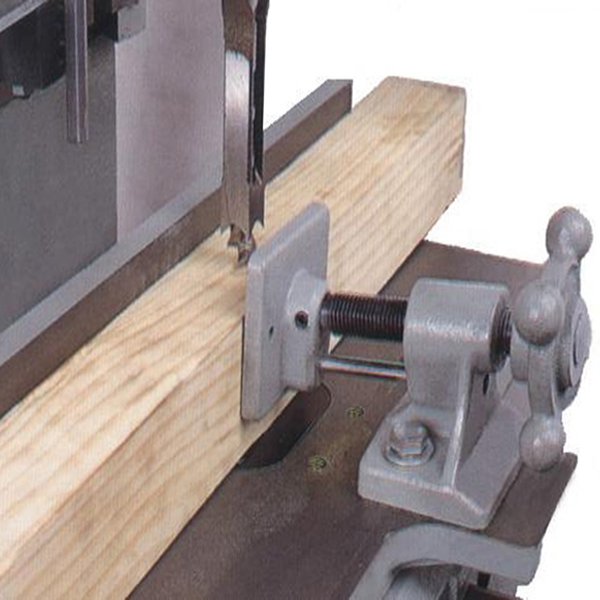

- Two position Clamp
- The clamp provides fast and secure clamping for a variety of stock sizes. ( right)
- Multi-position lever hand operation
- Gear –Pinion structure and Air cylinder weight balance system for smooth operation.
- More storage space for tools, chisels.... No more balance weight inside cabinet stand.
- Chip Chute for Go through mortising.
- Two Packages (Machine :124 kgs/138.6 kgs/11.7cuft ' / Stand :18/kgs / 20.5kgs / 4'cuft)
Gear-Pinion Structure
Multi-position lever hand operation
.jpg)
Storage space for tools and chisels
Chip Chute
| Model | SK-1913CT |
|---|---|
| Hosepower | 1 HP |
| Phase | Single |
| Centre of Chisel to Back Fence | 3-1/2 in (90 mm) |
| Chisel Stroke | 4-15/16 in (125 mm) |
| Lateral Table Movement | 3-1/2 in (90 mm) |
| Longitudinal Table Movement | 16 in (400 mm) |
| Max Chisel Size Hardwood | 3/4 in (19 mm) |
| Max Chisel Size Softwood | 1 in (25 mm) |
| Max Height of Timber | 6-1/4 in (160 mm) |
* All specifications, dimensions and design characteristics are subject to change without notice.
