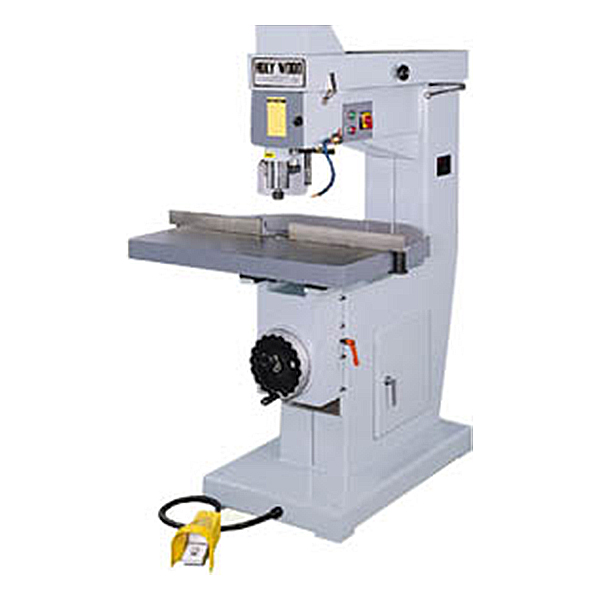

Router
| Model | SK-30RT |
|---|---|
| Throat Clearance | 750mm |
| Table dimensions | 1000 x 800mm |
| Spindle stroke | 100mm |
| Head stroke | 200mm |
| Hydraulic cylinder | 30mm |
| Clearance between chuck | 285mm |
| Table tilt | 0-45 degree |
| Spindle speeds | 10000/20000 rpm |
| Motor | 5HP/3Ph |
| Overall dimensions | 1410 x 1380 x 1680mm |
| Packing size | 1640 x1120 x 1950mm |
| Net weight | 650 kgs |
| Gross weight | 750 kgs |
* All specifications, dimensions and design characteristics are subject to change without notice.
