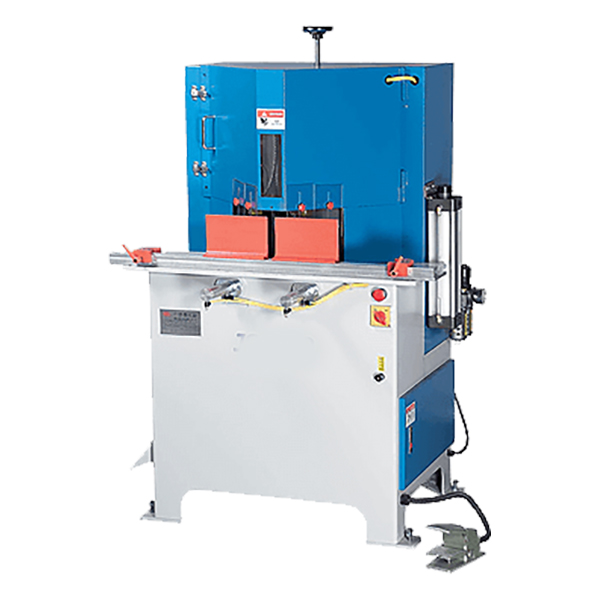

Mitre Saw
FEATURES
- Specially designed for cutting high workpieces.
- A miter saw features over pivot type.
- Saw blades feed vertically. Maximum height of cutting is 180mm.
- Automatic oil mist cooling for saw blades during cutting.
- Vertical and horizontal workpiece clamping design ensures extremely firm clamping for any type of aluminum workpiece.
- Saw blades move vertically on two precision shafts, assuring consistent cutting.
- Compensation for saw blade wear is easy to adjust.
- Saw blade height is adjustable for saving time of cutting.
- Model SK-200W for wood applications.
| Model | SK-200W |
|---|---|

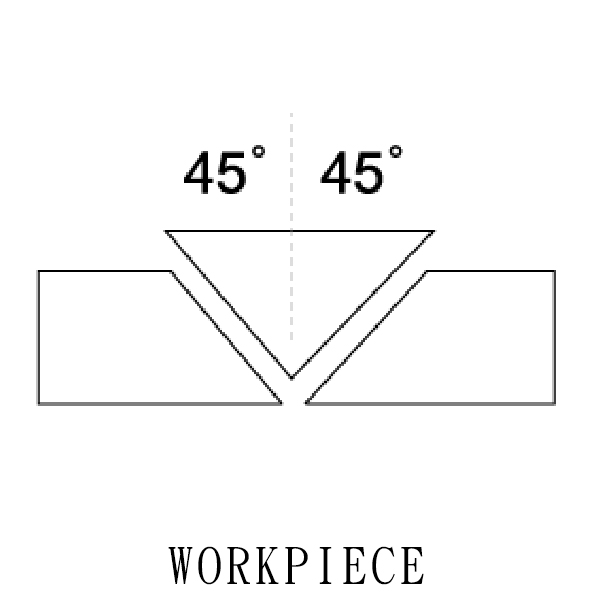

| Cutting angle： | 45° |
| Cutting width： | 90mm |
| Cutting height： | 180mm |
| Saw blade sizes： | Ø14'' x Ø 1'' x 3.0mm x 120T |
| Spindle speed： | 3200 RPM |
| Spindle motors： | 3HP x 2 |
| Clamping cylinders： | 4 Vertical clamps、2 Horizontal clamps |
| Cutting method： | Staggered blade vertical cutting |
| Table height： | 850mm |
| In-feed extension table： | 1525mm |
| Out-feed extension table： | 1525mm |
| N.W. / G.W.： | 448 / 520 kg |
| Machine dimensions： | 1000 x 910 x 1580mm |
| Packing dimensions： | 1200 x 1090 x 1830mm |
* All specifications, dimensions and design characteristics are subject to change without notice.
