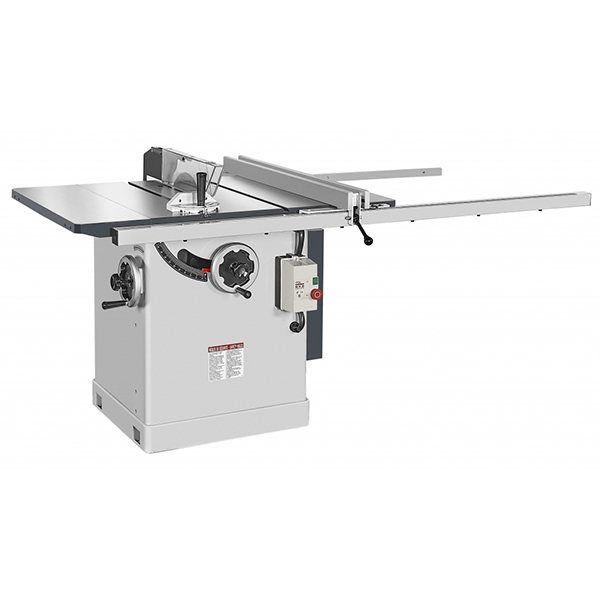

Table saws
- Heavy duty cast iron table is precision ground for accuracy.
- Heavy duty 3HP TEFC motor.
- Overload protected magnetic switch.
- Anti-kickback safety guard.
- Ruggedly constructed machine frame provides maximum stability
- The machine can perform different sizes of groove and slot cuts when fitted with certain tools.
- Dado and Dado insert (optional)
- Equipped with precision fence for high accuracy cuts.
- Extras long guide rail

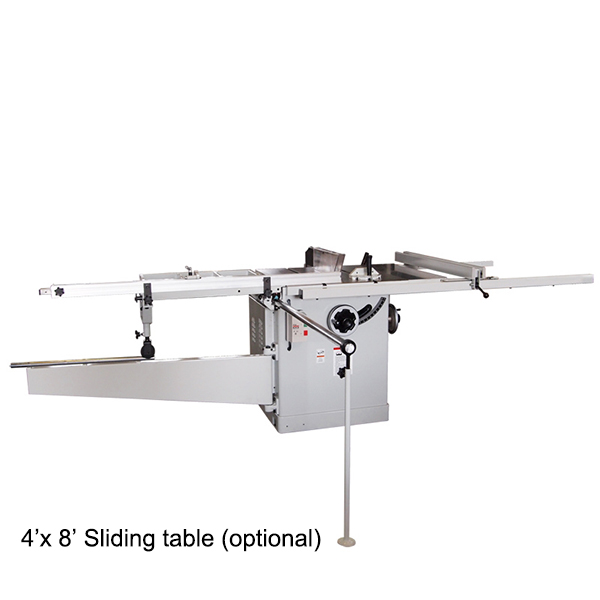

- Choice of 4’ x 8’ Sliding table (optional)
SLIDING TABLE（Optional）
- Sliding table rides on two ball bearings and V roller which is guided by a precision grind steel bar for smooth travel.
- Hold down clamp & Miter fence system is optional attachment for your request.
- Cross cut fence has a built in scale to use in conjunction with the stops provided for panel sizing also included a length stop.
| Model |
TC-10 |
TC-12 |
TC-14 |
TC-16 |
|---|---|---|---|---|
|
Diameter Saw Blade |
10” (250mm) |
12” (305mm) |
14” (250mm) |
16” (305mm) |
|
Max. depth of cut at degree 90 |
3” (76mm) |
4” (101.6mm) |
5” (125mm) |
5-1/2” (140mm) |
|
Max. depth of cut at degree 45 |
2” (50.8mm) |
2-3/4” (70mm) |
3-1/2” (88mm) |
3-7/8” (98mm) |
|
Arbor diameter |
5/8" (1”, 30mm Optional) |
5/8" (1”, 30mm Optional) |
5/8" (1”, 30mm Optional) |
5/8" (1”, 30mm Optional) |
|
Arbor speed |
4200rpm |
4000rpm |
3750rpm |
3750rpm |
|
Table size |
915mmx685mm |
1220mmx762mm |
1220mmx965mm |
1220mmx965mm |
|
Table height |
857mm |
857mm |
857mm |
857mm |
|
Sliding table capacity |
4’x 8’ (1220mmx2440mm) |
4’x 8’ (1220mmx2440mm) |
4’x 8’ (1220mmx2440mm) |
4’x 8’ (1220mmx2440mm) |
|
Max. rip to right of blade |
50” (1270mm) |
50” (1270mm) |
50” (1270mm) |
50” (1270mm) |
|
Motor |
3HP |
3HP (5HP Optional) |
5HP(7.5hp Optional) |
7.5HP (10HP Optional) |
|
Net weight |
407lbs (185kgs) |
572lbs (260kgs) |
847lbs (385kgs) |
869lbs (395kgs) |
|
Gross weight |
497lbs (225kgs) |
704lbs (320kgs) |
1012lbs (460kgs) |
1034lbs (470kgs) |
|
Packing size |
29” x 36” x42” |
32” x 36” x42” |
37” x 44” x42” |
37” x 44” x42” |
* All specifications, dimensions and design characteristics are subject to change without notice.
