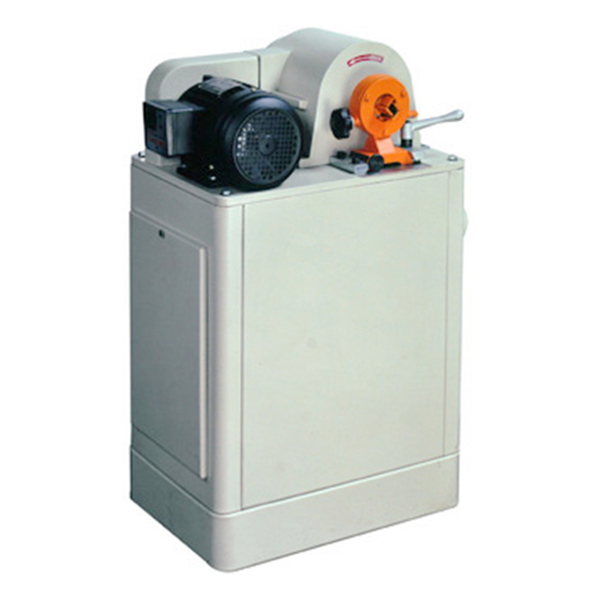

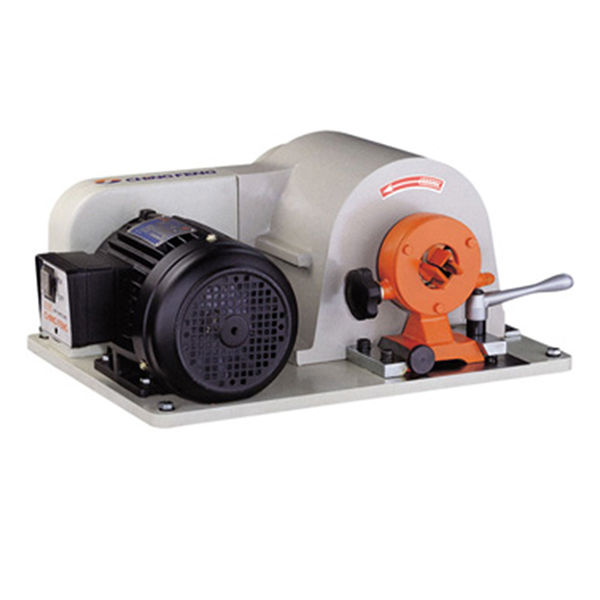

Dowel Milling Machines
- Cuts square wood into dowels, with working range from Ø6 to Ø18mm in diameter.
- Ideally suited to make dowels for jointing work in desk, chair and furniture assembly.
- Combine milling and spiral fluting in one pass of feed, that gives a superior method of jointing, more rigid than plan dowels.
- A valuable unit that turns your waste wood sticks into a useful dowels.
- Easy movement from one job site to another.
- Used together with CF-36 Dowel crosscut and chamfering machine that will be a complete set of perfect mechanism for marking dowels
- Dust proof switch
- Come with adjustable stick holding device.
| Model | CF-18 |
|---|---|
| Range of working diameter | Ø6 to Ø18mm |
| Range of working length | 240mm~Unlimited |
| Drive motor | 1HP |
| Feed speed | 6m/min |
| Machine size (L x W x H) | 560x440x580mm |
| Packing size (L x W x H) | 620x500x750mm |
| Packing size (L x W x H) (CF-18 + CF36) | 870x690x750mm / 180kg |
| Net weight | 65kg |
| Gross weight | 90kg |
* All specifications, dimensions and design characteristics are subject to change without notice.
