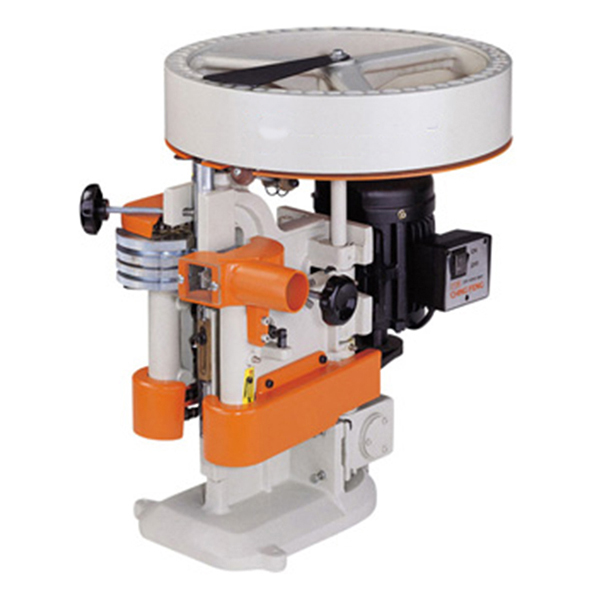

Dowel Milling Machines
- Suitable for cutting dowels form Ø6 to Ø18mm in diameter, 20 to 150mm in length.
- Combined cut-off and chamfering in a unit.
- Cutting length adjustable .
- Capacity 1800 pieces per hour.
- Simply loaded the wood dowel into the revolving tray, the machine will perform cut-off and chamfering.
- Easy movement from, one job site to another.
- Used together with CF-18 Dowel Milling Machine will be a complete set of perfect mechanism for making dowel.
- Dust proof switch
- Improved tension design on pressure roll
| Model | CF-36 |
|---|---|
| Range of working diameter | Ø6 to Ø18mm |
| Range of working length | 20mm~150mm |
| Drive motor | 1/2HP |
| Capacity | 30 piece/min |
| Machine size (L x W x H) | 560x500x580mm |
| Packing size (L x W x H) Packing size (L x W x H) |
620x610x750mm CF-18+CF36:870x690x750mm/180kg |
| Net weight | 70kg |
| Gross weight | 100kg |
* All specifications, dimensions and design characteristics are subject to change without notice.
