Cut-off Saw
FEATURES:
- Safety Guard: The saw features complete safety for fast cutting operations. The saw blade is totally enclosed in the cabinet, and covered by the clamp while it raises to perform cutting. The see-through side guard prevents the operator's hands from approaching the cutting area. This assures the safest cutting operations.
- Safety Switch: When the operator's hands approach the cutting area,the safety switch will automatically be actuated to stop the machine as a safety guard.
- Optional Infeed & Outfeed are equipped with a graduated gauge bar, with a swing stop for identical length of cut.
- Extension stop is provided on the outfeed roller conveyor, providing convenient length stops. It is ideal for repetitive cuts in a mass production line.
- Stripped table surface is precision ground, assuring cutting accuracy.
- Picture shown left-hand model is standard (Optional Right hand model)
- Fast cutting rate up to 81 strokes per minute. Cycle speeds are adjustable.
- Motion cycles are pneumatically operated, and conveniently controlled by a foot switch.
- Powerful, high torque 10HP motor drive.
- Clap is easily adjusted for work piece thickness variation
- Easy belt tension adjustment or replacement.
- High stability at fast cutting rates.
- Convenient cycle speed adjustment from outside the machine
 |

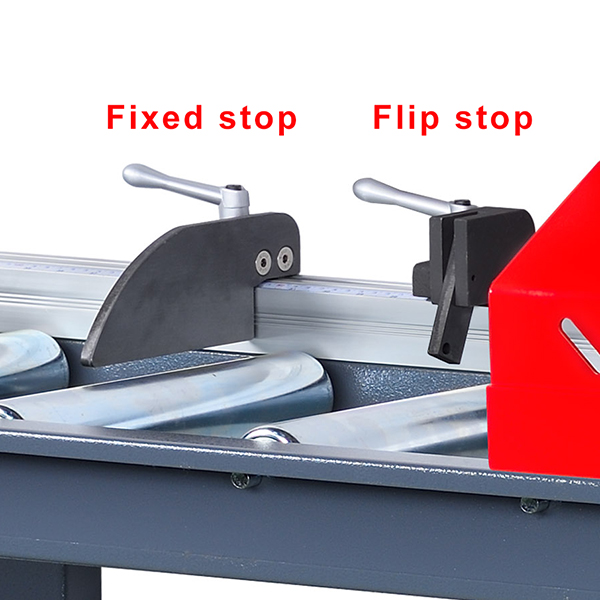

EXTENSION STOP(OPTIONAL) Extension stop is provided on the outfeed roller conveyor, providing convenient length stops. It is ideal for repetitive cuts in a mass production line. |
 |

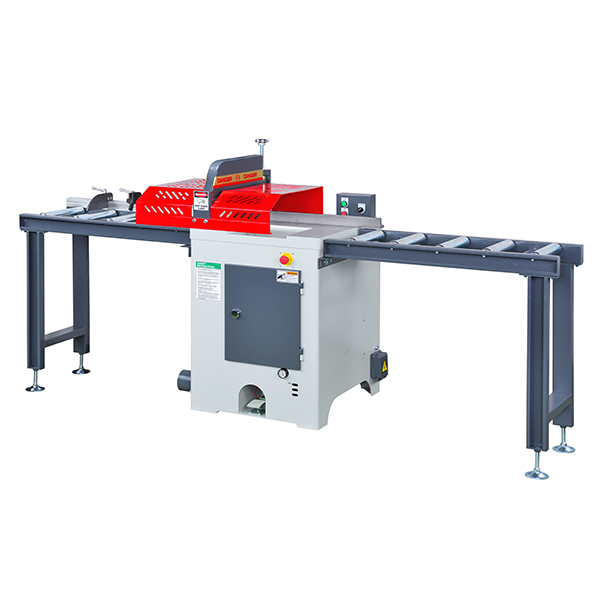

INFEED AND OUTFEED ROLLER CONVEYOR (OPTIONAL) The outfeed roller conveyor is equipped with a graduated gauge bar, with a swing stop for identical length of cut. Roller conveyors are supplied as optional. Length as required. |
 |
18" SAFETY SWITCH (OPTIONAL) When the operator's hands approach the cutting area, the safety switch will automatically be actuated to stop the machine as a safety guard. |
 |
SAFETY GUARD FOR SK-18CS (OPTIONAL) The 18" cut off saws feature complete safety for fast cutting operations. The sawblade is totally enclosed in the cabinet, and covered by the clamp while it raises to perform cutting. The optional see-through side guard prevents the operator's hands from approaching the cutting area. This assures the safest cutting operations. |
| MODEL | SK-18CS |
|---|---|
| Cutting capacity(thickness x width) | 50mm x 305mm , 75mm x 280mm, 100mm x 255mm |
| Cycle speed | 45 strokes / min. |
| Cycle operation | Air |
| Saw blade size | 460mm |
| Saw arbor diameter | 30mm ( 1" ) |
| Saw blade speed | 3600 RPM |
| Dust exhaust diameter | 100mm diameter |
| Motor | 7.5 HP, 3 phase(10HP Option) |
| Table size | 660mm x 710mm (26" x 28") |
| Net weight | 365kgs ( 800 lbs ) |
| Gross weight | 415kgs ( 910 lbs ) |
| Infeed & Outfeed table(Optional) | 2.4m( 8 ft )infeed & 2.4m ( 8 ft ) outfeed with fence, legs (3) |
| Optional | 3.6m infeed & outfeed with fence, legs (4) sets, (3) gravity flip stop |
| Optional | 4.8m infeed & outfeed with fence, legs (4) sets, (3) gravity flip stop |
| Packing dimensions | 940mm x 915mm x 1448mm |
* All specifications, dimensions and design characteristics are subject to change without notice.
