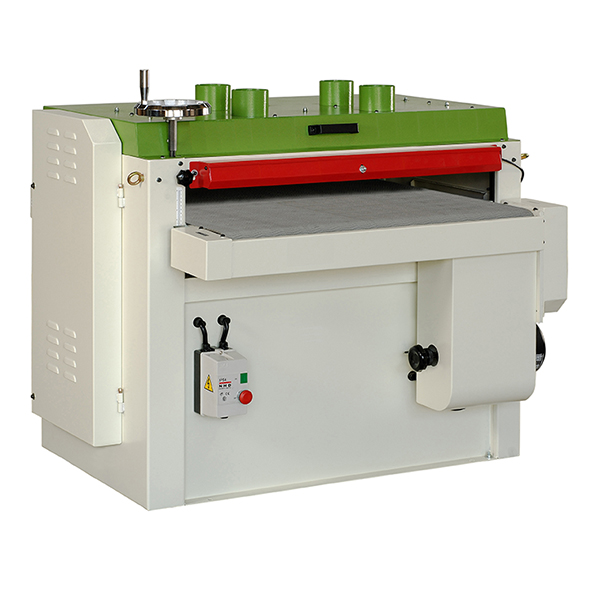

Sanders
- 2 sanding drums with 37 inches sanding width
- Maximum 4 inches sanding thickness
- Equipped with high efficiency dust system.
- Thickness control switch ensures operation safety.
- Industrial grade conveyor belt provides smooth running and slip-free performance.
- Variable feeding speed (optional)
- This versatile drum sander is designed for sanding a wide variety of parts such as metal, non-metal, wood, PC board, etc.
IDEAL FOR SANDING METAL AND NON-METAL
Efficient Dust system design.
| Model No. |
SK-37DS |
SK-37VS | SK-37VFD |
|---|---|---|---|
| Max. working width | 37 (940mm) | 37 (940mm) | 37 (940mm) |
| Max. working height | 4” (100mm) | 4” (100mm) | 4” (100mm) |
| Table dimension | 940 x 870mm (37"x 34 1/4") | 940 x 870mm (37"x 34 1/4") | 940 x 870mm (37"x 34 1/4") |
| Sanding wheel diameter | 150mm (6") | 150mm (6") | 150mm (6") |
| Speed of sanding wheel | 1720 RPM | 1720 RPM | 1720 RPM |
| Feeding speed | 3.7M / min (12FPM) | 2.4~7.2M / min (8~24FPM) by pitch pulley | 2~12M / min (6.5~39FPM) by VFD |
| Sanding motor | 7.5HP | 7.5HP | 7.5HP |
| Feeding speed | 1/4HP | 1/4HP | 1/4HP |
| Machine Dimensions (L x W x H) | 49" x 41" x 43" | 49" x 41" x 43" | 49" x 41" x 43" |
| Packing Dimensions (L x W x H) | 53" x 46" x 45" | 53" x 46" x 45" | 53" x 46" x 45" |
| Net weight | 460 KGS (1014lbs) | 460 KGS (1014lbs) | 480 KGS (1066lbs) |
| Gross weight | 520 KGS (1146lbs) | 520 KGS (1146lbs) | 540 KGS (1200lbs) |
* All specifications, dimensions and design characteristics are subject to change without notice.
