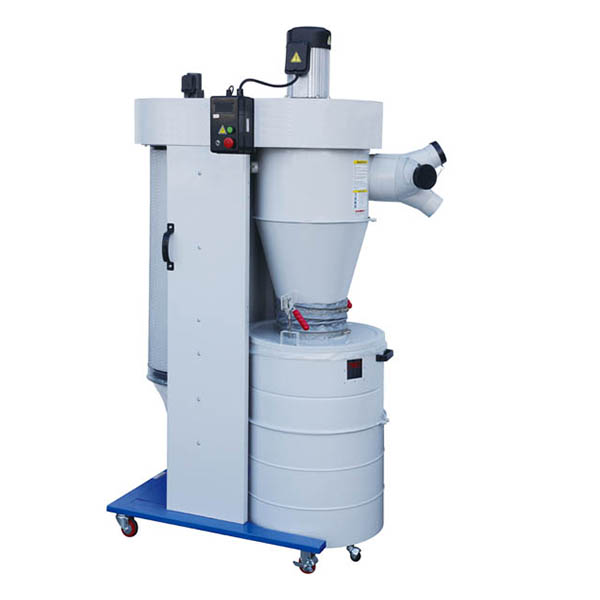

Cyclone Dust Collector
| Model | 3100 |
|---|---|
| Motor | 3HP |
| Air volume | 2200 CFM |
| Static pressure | 11.2 inch of water |
| Inlet diameter | 8” or 4” x 3 |
| Drum capacity | 60 gallons |
| Sound rate | 78 dB |
| Filter area | 6.5 M2 |
| Overall size | 150 x 94 x 217 cm |
| Packing size | Machine 122 x 69 x 112 cm |
| Canister: 159 x 50 x 55 cm | |
| Net weight / Gross weight | Machine: 139 kgs / 158 kgs |
| Canister: 41 kgs / 46 kgs |
* All specifications, dimensions and design characteristics are subject to change without notice.
