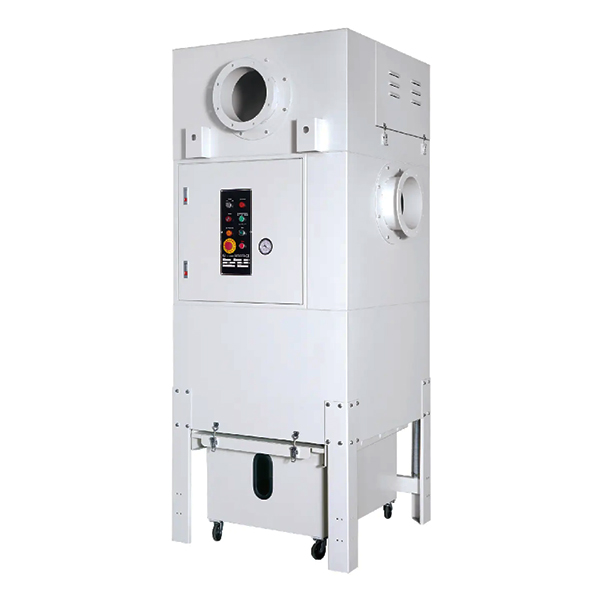

U Series Dust Collector
| Model | U-1000AC |
|---|---|
| Inlet size | 300 mm (12") |
| Motor | 7.5 kW (10 HP) |
| Air Flow @60Hz | 135 CMM / 4,867 CFM |
| Static Pressure (Max) | 4,500 Pa |
| Filter Cleaning | by compressed air |
| Air pressure requirements | Water-free and oil-free, 6~8 kgs / cm² (5.8~7.8 bar) |
| Filter Material | Polyester, 10 μm |
| Polyester + Teflon Membrane, 0.5 μm | |
| Number of Filters | 4 pcs cartridges |
| Filter area | 15.2 m² |
| Dust Tank Volume | 0.215 m³ |
| Noise Rate | 83 dB(A) |
| N.W. / G.W. | 460 / 580 Kg |
| Packing Dimensions | 104 L x 110 W x 240 H (cm) |
* All specifications, dimensions and design characteristics are subject to change without notice.
