Explosion Proof Dust Collectors
 |
 |
.jpg) |

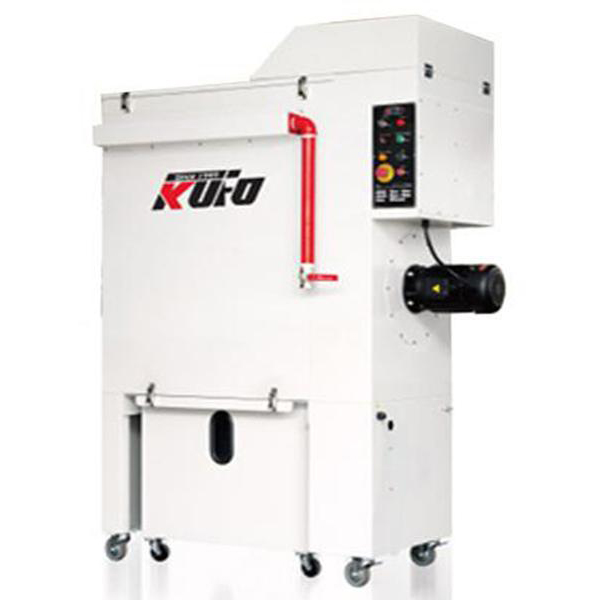

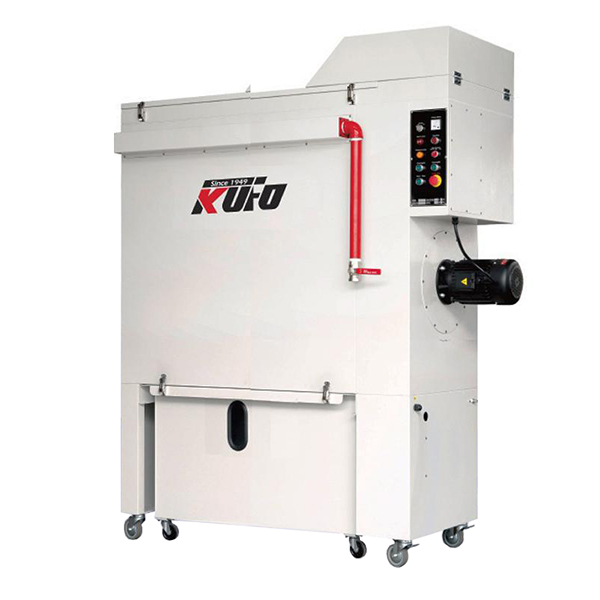

LS dust collector is designed for use in industrial environments for extracting different kinds of dust and dry shavings from single or multiple dust sources.
It can be installed directly at the workplace without any additional fire or explosion protection measures.
The blower, comprising a high efficiency centrifugal fan with backwardly curving blades, is situated on the pure-air side. The fan is positioned inside the unit and therefore soundproofed to obtain a low noise level. Its fine filter material ensures residual dust content in the air of less than 0.2 mg/m3.
ULTIMATE DRY DUST CONTROL SOLUTION FOR WIDE RANGE OF APPLICATIONS
Featuring in built-in Fire Control system to minimize damage caused by the dust expolstion hazard.
FEATURES:
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
| Optional : Noise elimination cover | Standard : Fire sprinkler |
 |
 |
| Optional : Fire Extinguiser | Standard : Pressure releaser device |
Examples
 |
 |
| LS-500E IS USED IN METAL SHEET PROCESSING FACTORY | LS-500E IS USED WITH THE METAL CUTTING MACHINE. |
 |
 |
| LS-500E IS USED IN THE CAR RECOATING | |
 |
 |

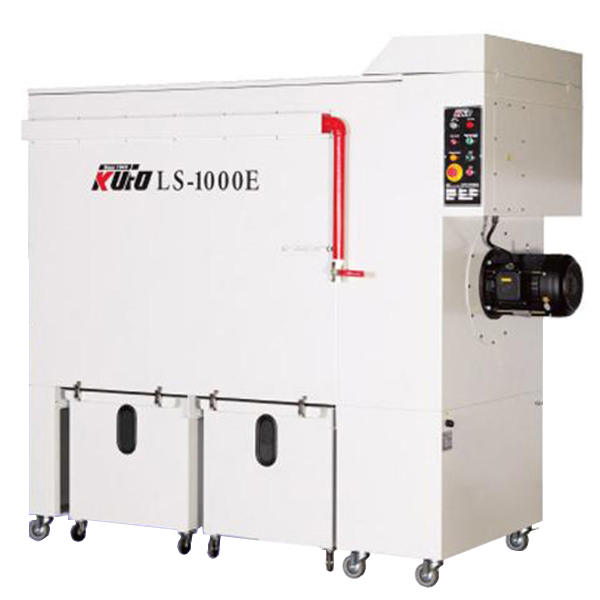

| LS-500A IN THE METAL SHEET PROCESSING FACTORY | LS-1000E IS USED WITH COLUMN MACHINING CENTER |
 |
 |
| LS-1000E IS USED WITH WOODWORKING WIDE BELT SANDER | LS-1000E IN A PLASTIC POWDER FACTORY |
 |
 |
| LS-500E IS USED WITH A MACHINING CENTER | |
.jpg) |
 |
| LS-500EC coupled with a HURCO VN10HSi 3-axis vertical machining center for graphite cutting. |
| MODEL | LS-500E | LS-500EC |
|---|---|---|
| Inlet size | 250mm | 250mm |
| Motor | 5HP(3.7kw) | 5HP(3.7kw) |
| Air volume | 75 CMM/ 2649 CFM | 88 CMM/ 3327 CFM |
| Static pressure | 2300 Pa | 2300 Pa |
| Filter cleaning | by air pressure | by air pressure |
| Filter type | bag | cartridge |
| Filter material | 5 micron,L-PET, electric conductive | Polyester, 10 micron |
| Number of filters | 20 | 6 |
| Filter area / Filter size | 8m2 / 0.4m2 / pc | 28.8m2 / 4.8 m2 / pc |
| Residual dust content | < 0.2 mg/M3 | < 0.2 mg/M3 |
| Dust tank dimension | 54 x 75 x 57 cm | 54 x 75 x 57 cm |
| Dust tank volume | 0.23 cbm | 0.23 cbm |
| Air pressure required | 6-8 kgs/cm2 | 6-8 kgs/cm2 |
| Sound rate | 82 dB @1 M | 82 dB @1 M |
| Sound rate with noise reducing cover, optional | Max .76 dB @ 1M | Max .76 dB @ 1M |
| Net / Gross weight | 210 / 280 kgs | 210 / 280 kgs |
| Packing dimensions | 170 x 77 x 213 cm | 170 x 77 x 213 cm |
* All specifications, dimensions and design characteristics are subject to change without notice.
